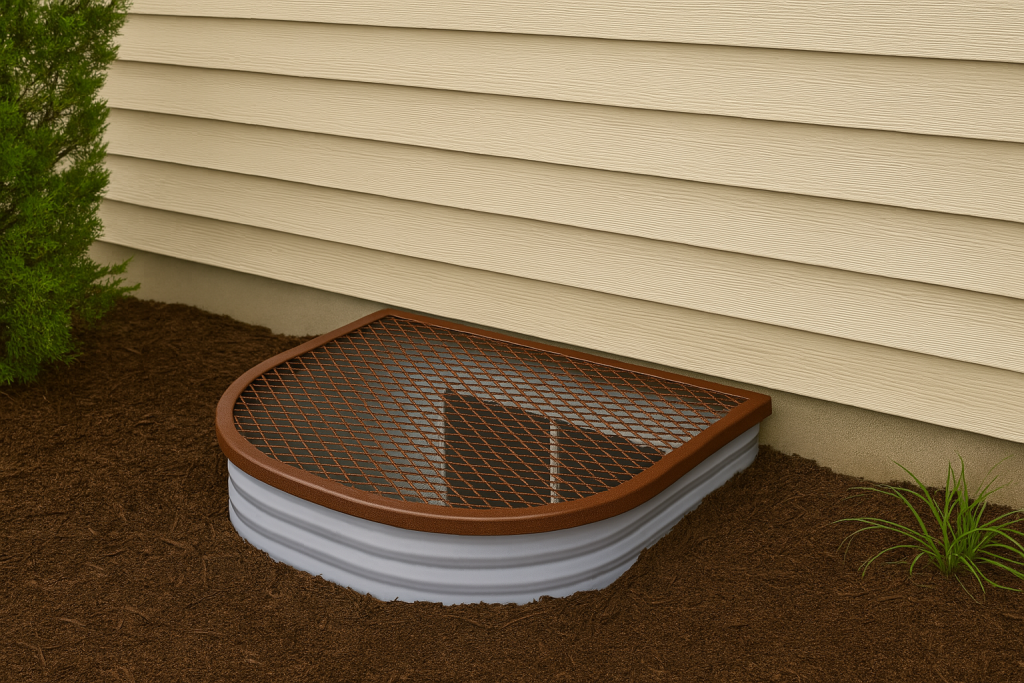

Window Wells
Designed to provide light, drainage, and protection for below-grade windows, with durable galvanized steel construction that resists rust and weathering.
18-Gauge Egress Area Walls
Our 18-gauge galvanized steel area walls offer unparalleled durability and protection for basement windows. Perfect for egress requirements, these walls are designed to enhance safety, maximize natural light, and deliver long-lasting performance.
- Heavy-duty steel construction.
- Protects below-grade windows while enhancing basement safety.
- Available in various sizes to fit project needs.
- Galvanized, white and stone finishes
Benefits:
- 18-Gauge Steel: Heavy-duty construction for strength and longevity.
- Code-Compliant: Meets IRC egress requirements.
- Modern Design: Allows light and airflow into basement spaces.
- Easy Installation: User-friendly design for installers and contractors.
Area Walls 18 Gauge Round | Commercial Grade | ARC Style
• Ideal for the intermediate basement window size
• 18 gauge G-90 galvanized steel for normal soil loading
• Corrugation depth full 1/2” giving maximum strength
• Rolled top and bottom edge standard on 48”, 60”, and higher area walls
• Rounded corners for safety
• Holes in flanges for bolting to wall
Configurations of most other Width, Height, or Projection available upon request.
Area Walls 18 Gauge Square | Commercial Grade | AQC Style
• Sharp 4” radius corner to maximize usable open area inside area wall perimeter
• 18 gauge G-90 galvanized steel for normal soil loading
• Corrugation depth full 1/2” giving maximum strength
• Rolled top and bottom edge standard on 48”, 60”, and higher area walls
• Rounded corners for safety
• Holes in flanges for bolting to wall
Configurations of most other Width, Height, or Projection available upon request.

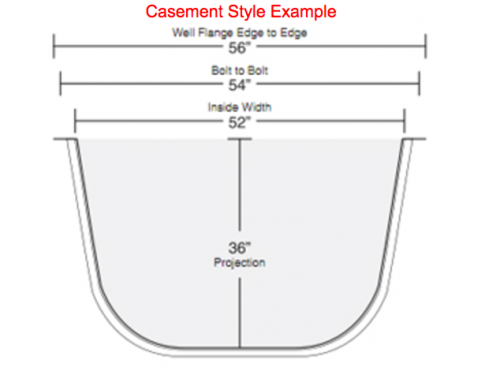

Area Walls 18 Gauge Non-Egress Casement Style | Commercial Grade | ACC Style
• Ideal for larger basement windows
• 18 gauge G-90 galvanized steel for normal soil loading
• Corrugation depth full 1/2” giving maximum strength
• Rolled top and bottom edge standard on 48”, 60”, and higher area walls
• Rounded corners for safety
• Holes in flanges for bolting to wall
• Projections less than 36″
Configurations of most other Width, Height, or Projection available upon request.

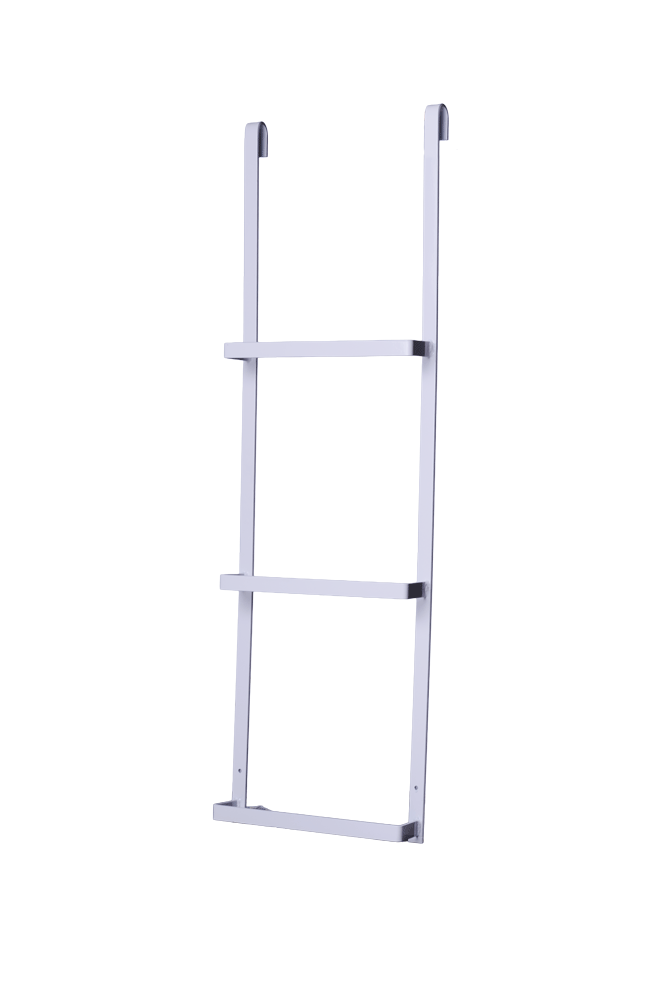

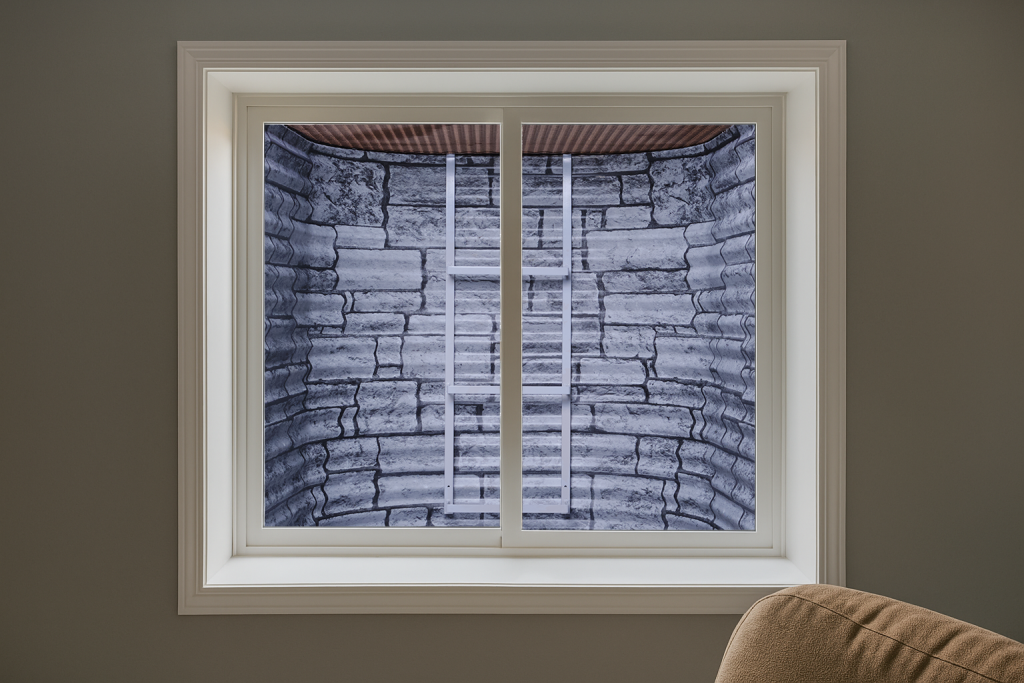

Area Wall Ladders & Grates
- IRC 310.2.1 compliant for egress
- Welded steel construction
- Coated with corrosion-resistant grey or white paint or hot-dipped galvanized after fabrication
- Mounting holes for attachment to area wall
| Model | Area Wall Height | Rungs | Overall Height |
| AL-3GHD | 48″ to 60″ | 3 | 46-1/2″ |
| AL-4GHD | 72″ to 84″ | 4 | 70″ |

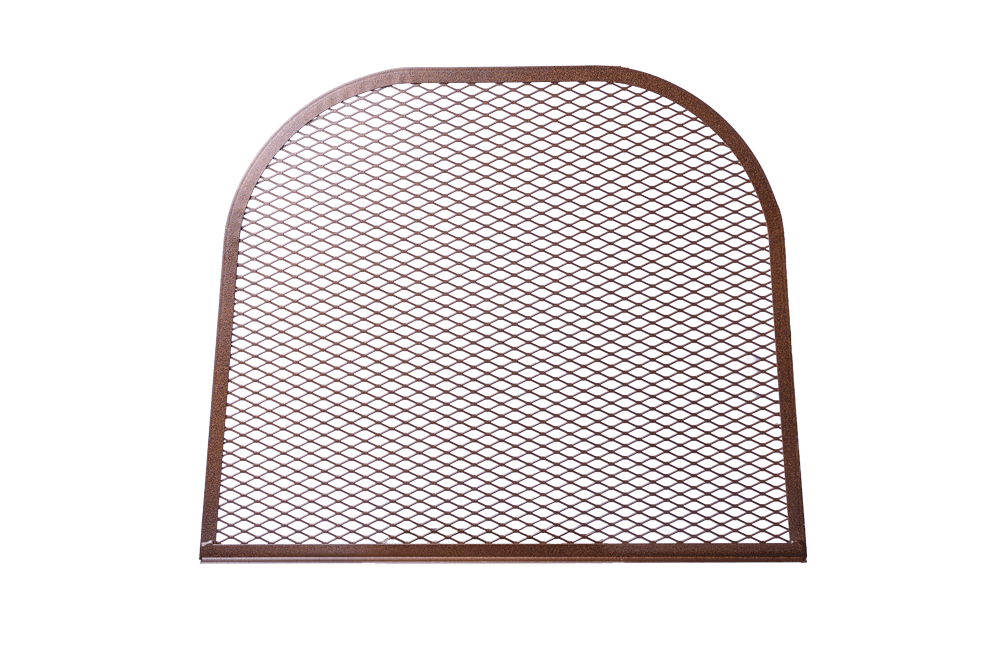

Egress Area Wall Grates
- IRC 310.4 compliant for egress
- Welded steel construction
- Coated with corrosion-resistant paint or hot-dipped galvanized after fabrication
- Expanded metal grates available painted white or bronze
Custom sizes of round, straight or square styles available upon request.
| Model | Description |
| AGC4236 | Fits All 42” x 36” Area Walls |
| AGC4436 | Fits All 44” x 36” Area Walls |
| AGC5036 | Fits All 50” x 36” Area Walls |
| AGC5236 | Fits All 52” x 36” Area Walls |
| AGC5536 | Fits All 55” x 36” Area Walls |
| AGC6036 | Fits All 60” x 36” Area Walls |
| AGC6736 | Fits All 67” x 36” Area Walls |
