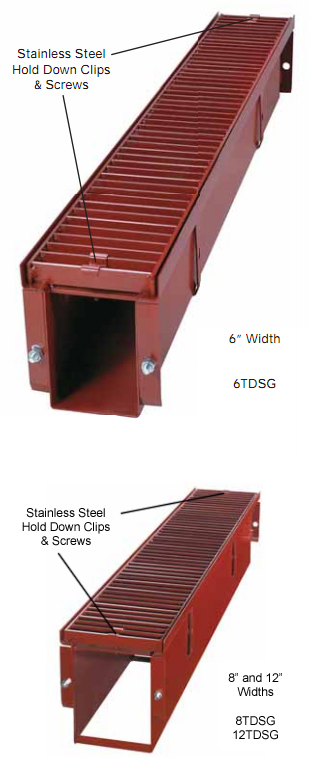

Trench Drain
• Standard Lengths: | • Skid Quantities: | |
6” Wide – 1’, 4’, 5’, and 6’ | 6”-4’ and 5’ – 49 pieces | |
8” Wide – 4’, 5′ and 6′ | 6”-6’ – 35 pieces | |
12” Wide – 4’, 5′ and 6′ | 8”-4’ – 25 pieces | |
12”-4’ – 15 pieces |
Product Widths | Trench Sizes | ||
6” | 8” | 12” | |
Top (W) | 6-1/2” | 8-1/4” | 12-1/4” |
Grate (WG) | 5-7/8” | 7-7/8” | 11-7/8” |
Box (WI) | 4-1/2” | 6-1/4” | 10-1/4” |
